Solar Powered Navigation light/Marine light/Buoy Light

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $128.00
  • 50 - 99 Pieces
    $118.00
  • 100 - 499 Pieces
    $108.00
  • >=500 Pieces
    $98.00
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 101 - 300 >300
Est. Time(days) 3 5 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Item Type:
FISHING LIGHTS
Light Source:
LED
Input Voltage(V):
7.6
Lamp Power(W):
2.5
Lamp Luminous Flux(lm):
100
Lamp Luminous Efficiency(lm/w):
99
CRI (Ra>):
1500
Color Temperature(CCT):
COOL WHITE
Working Temperature(℃):
-30 - 70
Working Lifetime(Hour):
1000000
IP Rating:
IP68
Certification:
ce, RoHS
Emitting Color:
blue/green/yellow/red/withe
Lighting Distance(M):
4000-8500
Place of Origin:
Shaanxi, China
Brand Name:
HAN
Working Mode::
Flash and steady-on adjustable
Available Colors:
Five colors (R/B/G/Y/W)
Warranty Time:
5 years for light
Flash Patterns:
Customized (256 code)
Horizontal Degree:
360° /112.5°/135°/225°
Battery:
Ternary lithium battery
Size:
212*D227MM
Material ::
PC shell
Intensity:
up to 32cd
Autonomy::
>21day
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Package Type:
1)Package Type One unit in one inner carton 6 units in one outer carton Outer carton
2)size 73*49*27cm (with the bird spike) / 73*49*23cm (without the bird spike)
3)Gross Weight :3.5KG per pcs
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 300 >300
Est. Time(days) 3 5 10 To be negotiated
Specification



                                           4NM solar powered marine navigational lights

The Spike Bird is optional

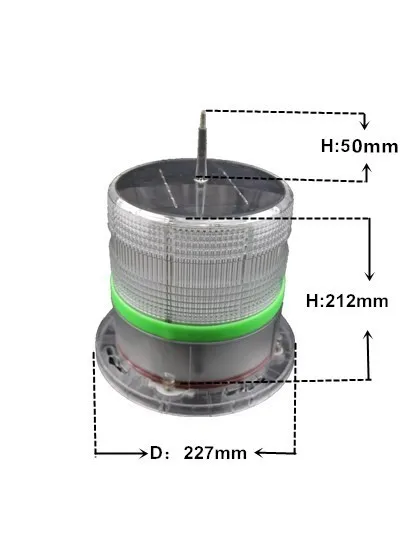

Dimensions: height: 8.353" (212mm)  Width :8.944" (227mm)

              Weight:  3.3 lb (1.5 kg)

Light Characteristics:


Working Mode: Steady on & Flashing Adjustable
Intensity Adjustable: 25% 50% 75% 100%
Horizontal Degree: 360°
Available Colors:  Red Yellow Green White Blue
Visual Range: 2.5-4.5nm
Waterproof: IP68
Flash Patterns: Customized (256 code)


Control Panel

1. Effective intensity adjustment
The effective intensity of HAN700 is a measure of its apparent brightness,we have 4 kinds of programmed intensity(O N 1 2). intensity can be adjusted from 25%, 50%, 75% and 100% of total intensity.
2. Flash / steady adjustment
adjust the switch to ON, then it's flashing mode,
adjust the switch to 1, then it's steady mode.
3. Toggle switch
Turn On or Off easily by your finger moving the toggle switch towards the ON or OFF side.

Body

1.Material : PC shell

2.Mounting options: 4 bolts

3.Configuration: Removing the rotary stopper end
 There is steel wire to prevent stopper end falling during mounting and adjusting.
When you finish the configuration,
You must rotate the rotary stopper end tightly.

Solar panel & Battery

Solar panel Output Power: 8V 2.5watts
Battery Type: Ternary lithium battery
Battery Capacity: Output Voltage
Battery Output Voltage:7.6V
Autonomy: >21days (12hour darkness,12.5%duty cycle)


Light Source

Light Source:LED

Led Life: ≥100,000hours

Intensity: 26cd

Led number: Normally 16 pcs led , it could be customized.

Features & Function

1. All components of the item are replaceable
2. Waterproof design ensures the long life span and suitable for all environment application

3. High intensity output and high transparent housing bring over 5km visual range at night

4. Industrial-level self-contained solar LED beads
5. Optional colors for whatever condition our client use them to

6. Automatic operation from dark to dawn
7 .Adjustable intensity intelligently meets various needs in different environmental applications

8. Internal switch and vandal resistance design avoid mal-operation and destruction by mistake

9. Easy installation requires no special tools and technicians
10.No special maintenance and servicing for up to 10 years with exception of battery replacement if it dies

11.With built in Ternary lithium battery, easy for replace
12.Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
13.Based on LED technology, and its color complies to IALA Recommendations E-200-1.
14. 256 kinds of flashing rate are available, comply with IALA
15. Manufactured to ISO9001:2008 Quality Assurance standards
16. manual switch
17.Extremely Reliable and cost saving


click for more information!!!


Applications

Port light

Fishery cage and buoy application

Marine navigation light

1. Marine and dock lighting

2. Marine Aid-to navigation light

3. Port lighting; Boat houses

4. Oil & Gas offshore platform marking

5. Sea ports warning; Private docks

6. Marine floating signs ....

Installation Process

Side lights: The larboard red light ,and the starboard green light placed on right sides of the ship's highest deck, 112.5 degrees;

Mast light: 225 degrees

Tail light:White light in the middle of the stern,135 degrees

Masthead lights:White,360 degrees

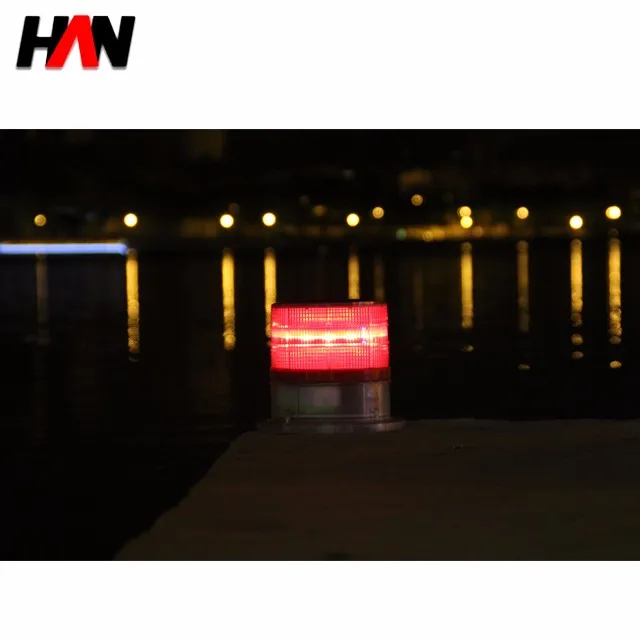

Wharf / dock /  pier installation

 I am in red cloth this moment,you are looking at me ?A boss screw me down here with 4 bolts.I always see many many different scene: many people walking, talking, singing, eating ...




Fishery light

A boss bought many pieces of fishery lights,the picture shows that they are installing them, very happy and carefully.

Certifications

Don't be scared, we have passed those certificates,to make you assured, to make you happy.

Company Information

1. We possess a creative and innovative R&D department for the solar products, offering all kinds of international brand OEM/ODM services.
2. We are located in the high-tech industrial zone with more than 150 employees, of which some professional technicians account for 30%.
3. Our Solar Obstruction Light have passed the CE, ROHS, IP68 certifications and have gained a considerable market share,
4. popularity and reputation both at home and abroad in over 50 countries.
5. Cooperation between your esteemed company and Greenwood Solar
6. will be a better way for business expansion which will absolutely benefit both of us.
7. We sincerely looking forward to flying forward with you for a greener and cleaner world.

Factory workshop



Showroom

International Department

.

FAQ

Q1. Are you factory ?

A: Yes, we have more than 15 years experience.

Q2. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and delivery.

Q5. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty for light; 3 years for battery.
