High quality double girder/beam crane end carriage overhead crane

FOB Reference Price:Get Latest Price
$100.00 - $500.00 / Piece | 1 Piece/Pieces (Min. Order)
Application:
Warehouse, workshop, indoor
Rated Loading Capacity:
1~20t
Model Number:
LDA
Customization:
Customized packaging (Min. Order: 1 Pieces)
Graphic customization (Min. Order: 1 Pieces)

More

Customized logo (Min. Order: 1 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Feature:
Bridge Crane
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works
Condition:
New
Rated Lifting Moment:
100KN
Max. Lifting Load:
50t
Max. Lifting Height:
6m~30m
Span:
7.5-31.5m
Place of Origin:
Hubei, China
Brand Name:
VOHOBOO
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Online support
Product Name:
End carriage
Control method:
Remote Controller
Cross speed:
20, 30, 45, 60m/min
Lifting mechanism:
Eliectric Hoist
Motor power:
0.3, 0.4, 0.75, 1kw
Color:
Customer Requirements
Crane feature:
Single Girder Oveherd Crane
Power Source:
3 Phase 380V 50hz or customized
Type:
single girder and double girder end carriage
Wheel size:
W125*60
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week End carriage
Packaging & Delivery
Packaging Details
Export stand wooden case
Port
China port

High quality double girder/beam crane end carriage overhead crane

Product Description

End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.

It only need to weld the main beam and end beam after correction. Making crane manufacturing, installation and maintenance very easily.

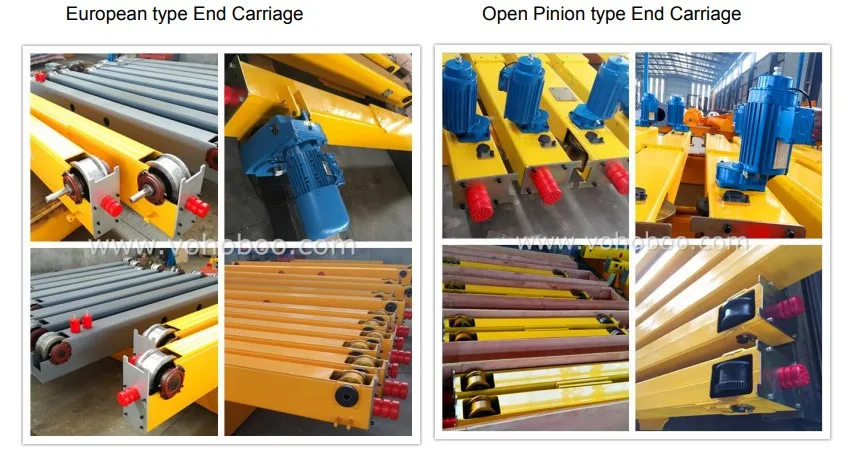

European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.


Product drawing







Product Parameters



End carriage modelApplication of crane modelRectanglar steel tubeWheel sizeMotor power
L125-151t-7.5m150*150*6W125*600.3KW*2
L125-201t-11.5m
L125-251t-16.5m
L160-15

2t/3t-7.5m

150*200*8W160*700.4KW*2
L160-202t/3t-11.5m
L160-252t/3t-16.5m
L160-302t/3t-22.5m
L160-352t/3t-28.5m
L200-205t-11.5m150*250*8W200*700.4KW*2
0.75KW*2
L200-255t-16.5m
L200-305t-22.5m
L200-355t-28.5m
L250-2010t-11.5m200*250*8
200*300*8
W250*80

0.75KW*2

1.1KW*2

1.5KW*2

L250-25A10t-16.5m
L250-30A10t-22.5m
L250-35A10t-28.5m
L250-25B16t-16.5m
L250-30B16t-22.5m
L250-35B16t-28.5m
L315-3020t-16.5m200*400*8W315*901.5KW*2
L315-3520t-28.5m
Packaging & Shipping

Quotation Request

Remark: Complete set End Carriage include below parts:

Wheel, Gear motor, Junction plate, connecting bolt, Closure plate,bumper block and so on.



In order to recommend suitable End Carriage/ End Truck for you, please kindly advise below information:

1. Where is the End carriage used on? Single girder crane or double girder crane?
2. The lift capacity of crane?
3. The span of crane?
4. the end carriage traveling speed of crane?
5. Do you also need operation cabinet? the motor for end carriage traveling with inverter or not?
